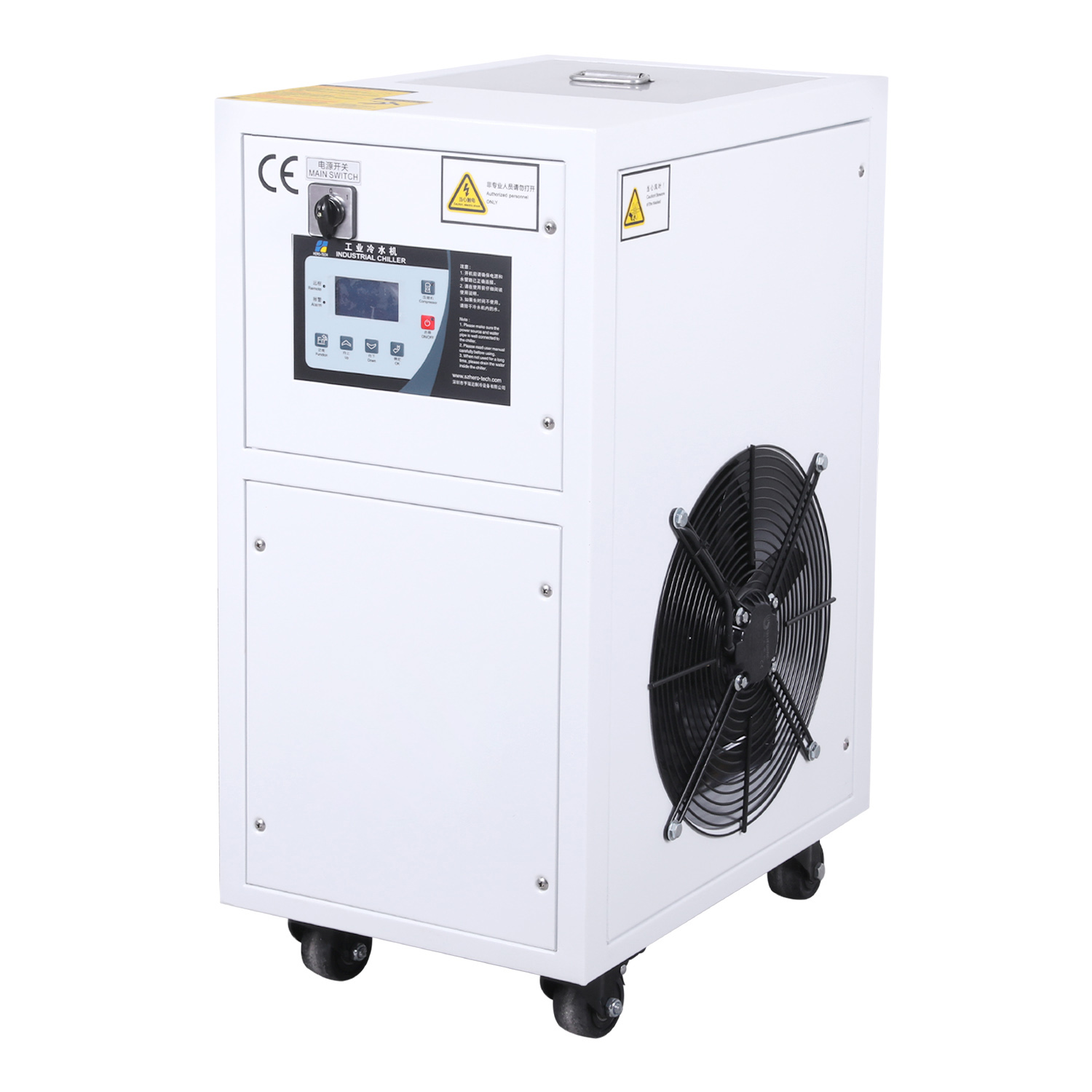

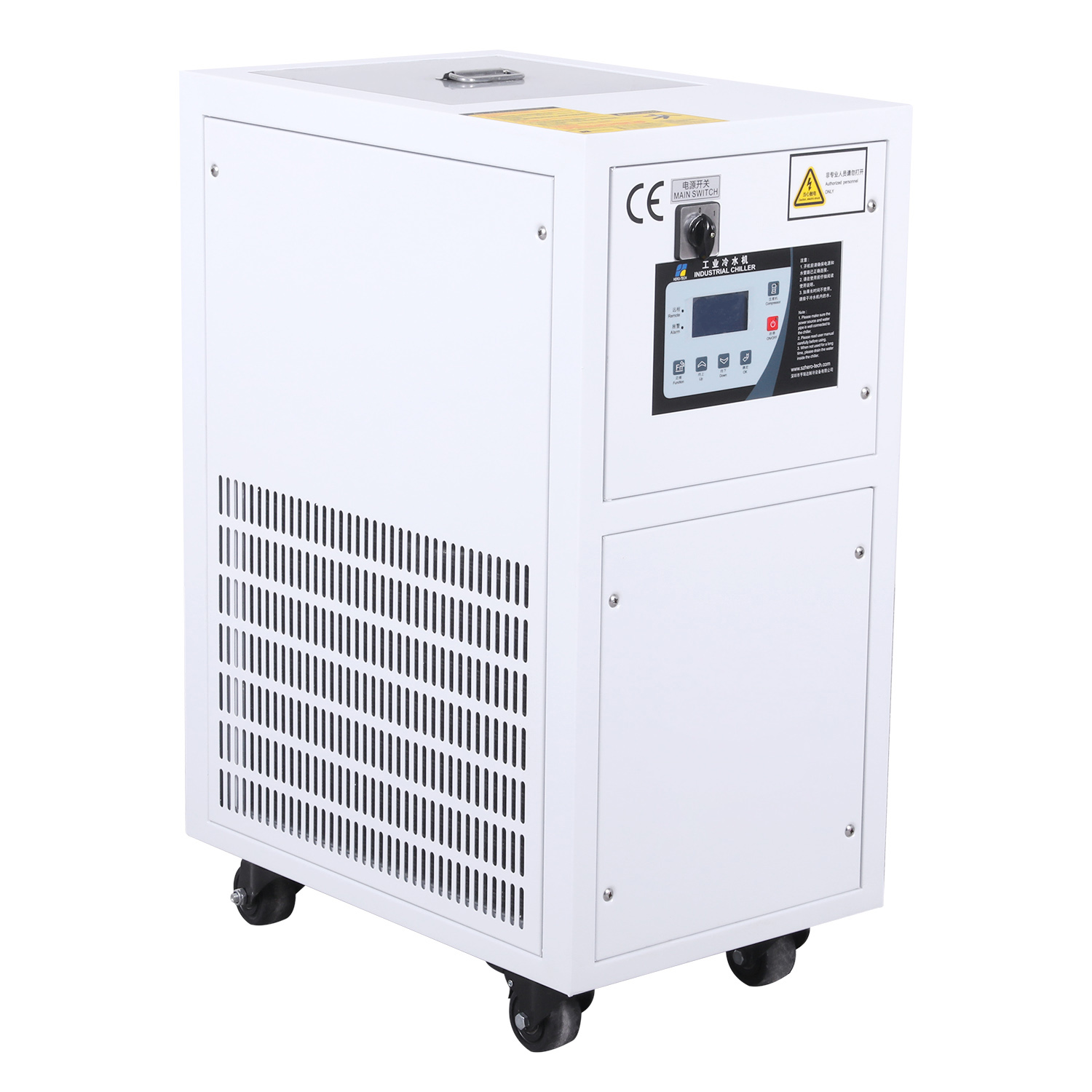

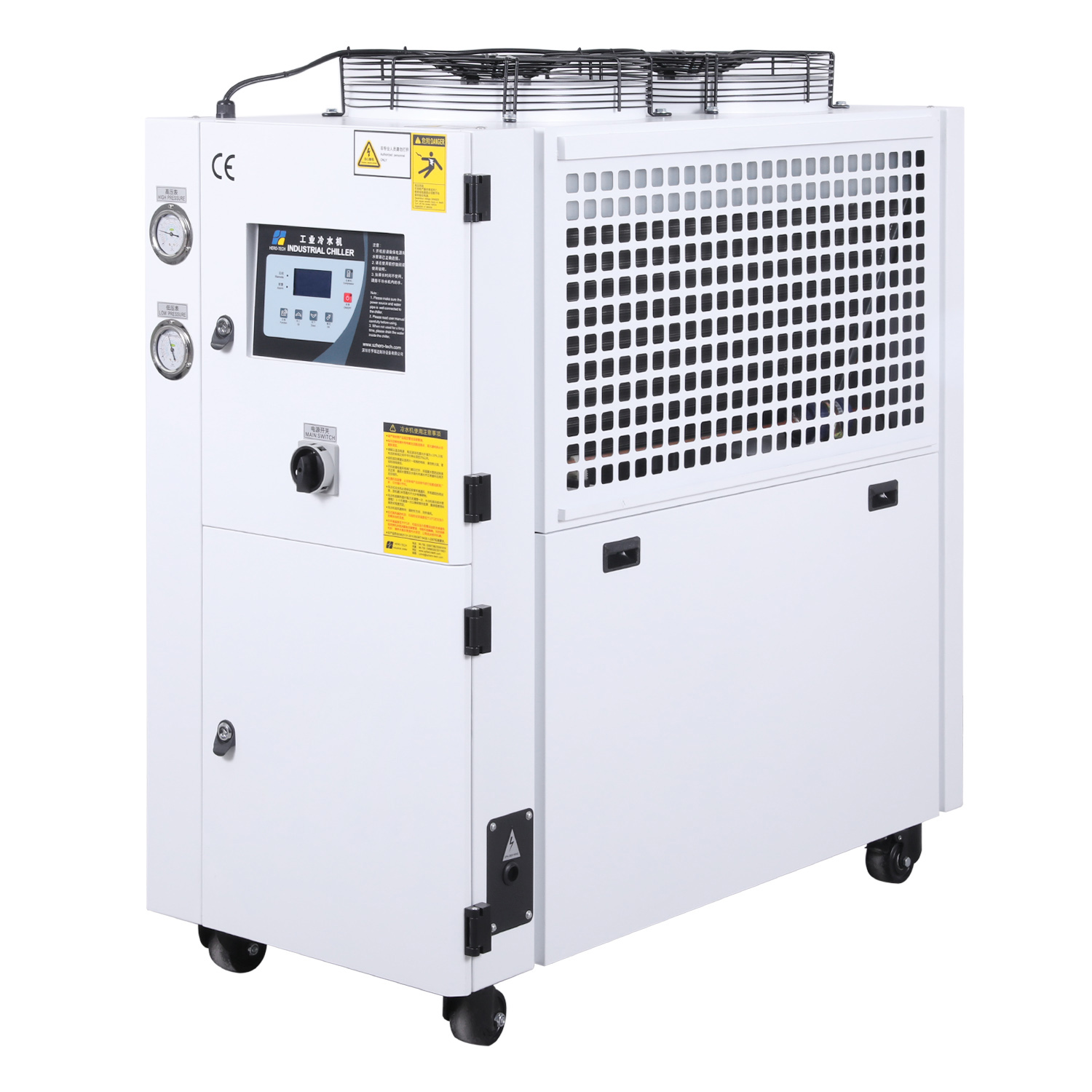

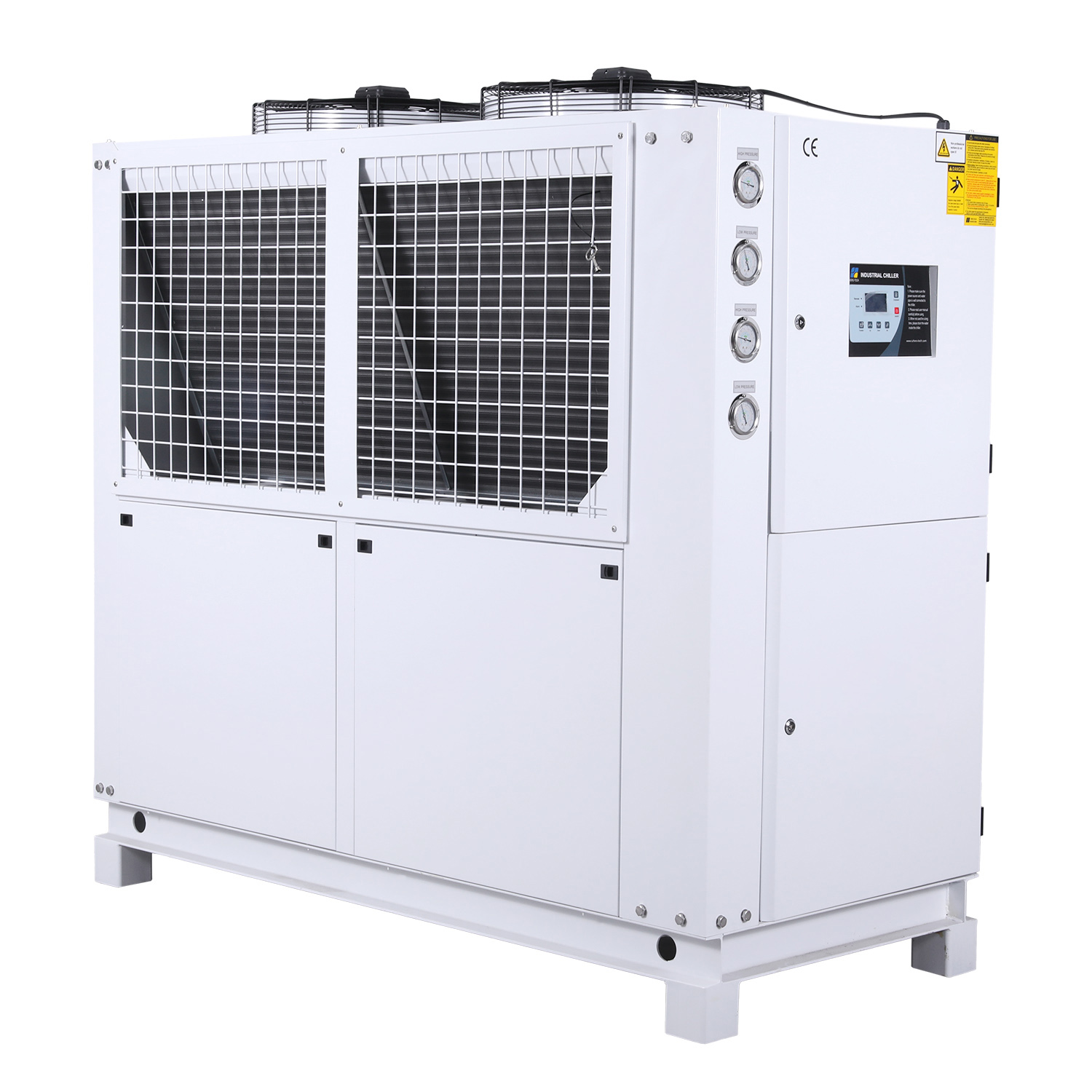

Industrial Scroll Type Chiller

Features:

Adopted world famous brand compressors and high effciencycondenser and evaporator, ensure high cooling efficiency, lowenergy consumption, low noise and long service life;

Over sized evaporator and condenser ensure the chiller unitrunning under 45'℃ high ambient temperature;

Microcomputer control System offering accurate temperature stabilitywith in ±l℃;

Low noise and big volume air blower;

Standard equipped lron pump, stainless steel or high lift pump for option;

Multi-protection devices ensure the chiller unit running safely;

The innovative evaporator-in-tank configuration ensure a steady watertemperature offered, as the evaporator also cools the tank itself . reducesambient heat gain, and increases the efficiency;

HTl-W water-cooled industrial chiller adopted shell and tube condenser, feat-ures speed heat dissipation and high cooling efficiency, it is good to be usecin high ambient temperature area with abundant water;

HTl-A air-cooled industrial chiller adopted aluminum fin/copper tube type code;

Power supply:1PH-220V/50HZ(1/2HP to 2HP)
3PH-380V1415V150HZ(3HP t0 60HP)
60HZ for option.

Refrigerants:R-407C,option:R-410A/R-134A.

Model	COOLING CAPACITY(KW)				COMPRESSOR	Pump		Inlet/Outlet DIAMETER (inch)	TANK VOLUME (L)
Model	WATER (OUTPUT TEMP.)				MOTOR(HP)	KW	H(m)
HTI-***	+7℃	+10℃	+12℃	+15℃
3A	6.46	7.27	7.85	8.08	3	0.37	19.5	1	29
4A	9.83	11.06	11.95	13.37	4	0.55	25	1	29
5A	11.27	12.69	13.70	15.34	5	0.55	25	1	29
6A	13.74	15.48	16.73	18.76	6	0.55	25	1	29
8AD	19.70	22.12	24.00	26.80	4	0.55	22	1-1/2	63
10AD	22.54	25.40	27.40	30.68	5	1.0	24	2	73
12AD	27.48	30.96	33.46	37.52	6	1.0	24	2	73
15AD	34.92	39.32	41.48	47.54	7.5	1.3	25	2	107
20AD	46.34	52.26	56.48	63.30	10	1.6	21	2	145
25AD	56.68	63.62	68.58	76.58	12.5	1.6	21	2	145
30AD	70.00	78.86	85.20	95.36	15	3.7	20	3	256
40AF	92.68	104.52	112.96	126.60	10	3.7	20	3	327
50AF	113.36	127.24	137.16	153.16	12.5	3.7	20	3	313
60AF	140.00	157.72	170.40	190.72	15	4.0	21	3	288
