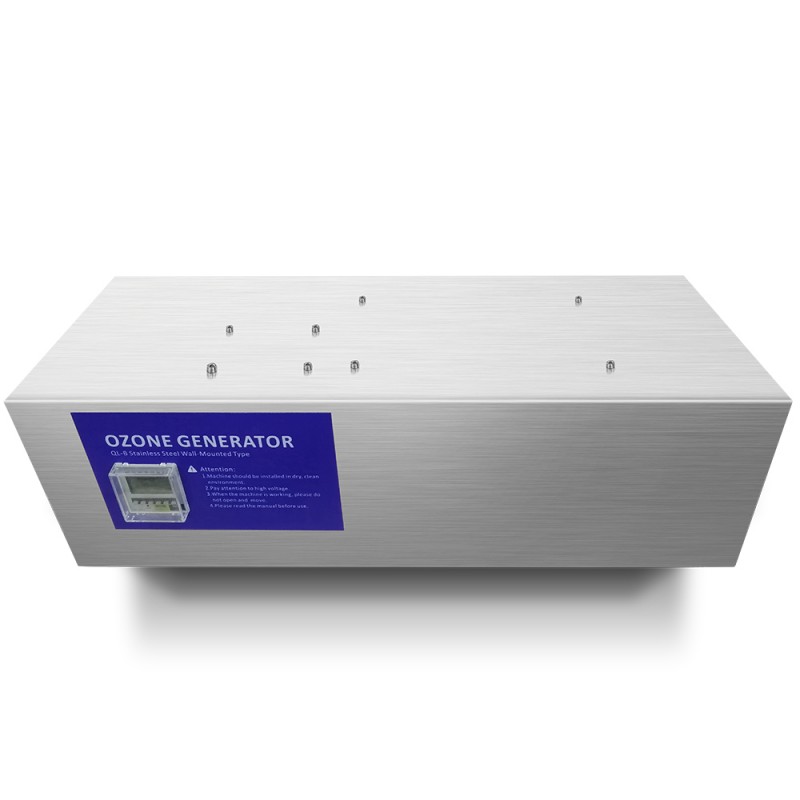

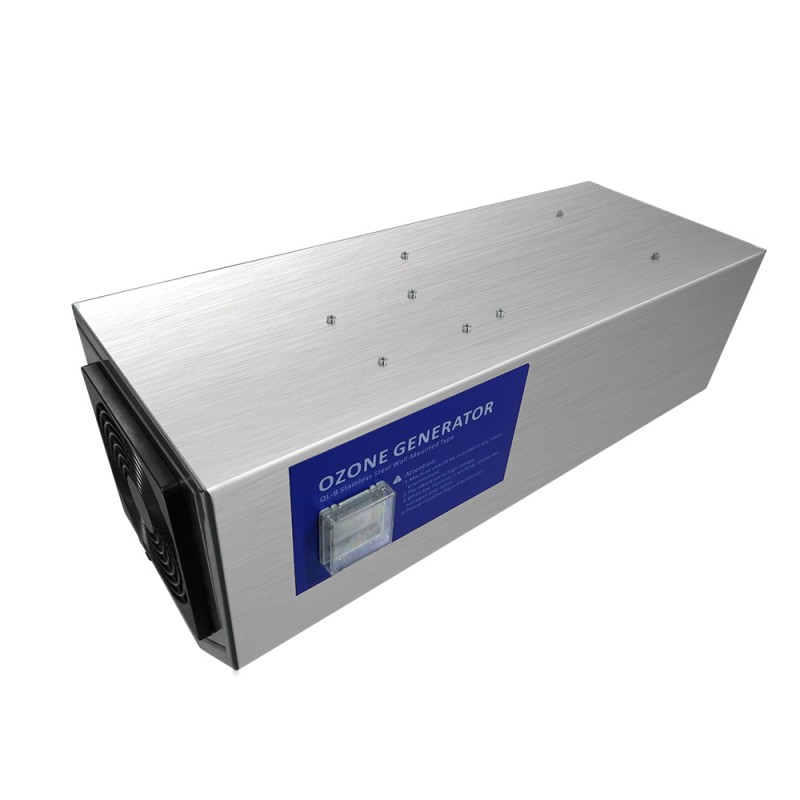

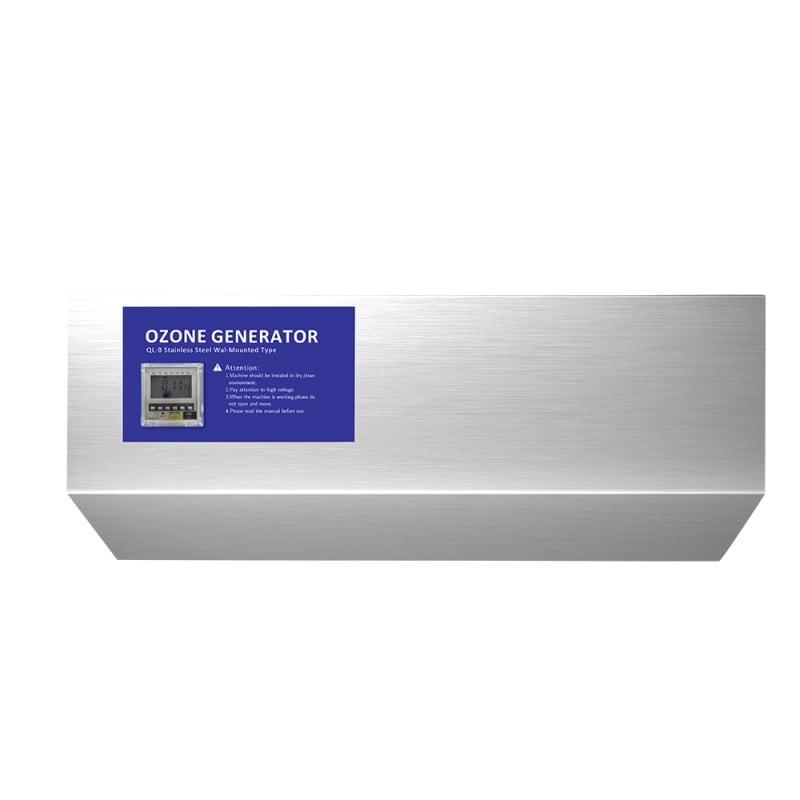

QLA-3G/5G/10G-B Wall-mounted Ozone Generator
Features:
Beautiful shape, small size, does not occupy space;
Long life of generator unit, high output,low energy consumption;
Air-cooled heat dissipation, with axialflow fan to assist in heat dissipation,can be stable and continuous work;
The body is made of stainless steel,anti-corrosion and anti-oxidation;
Fast permeability, sterilization without dead ends.
| Model | Ozone output | Power | Purify area | Ozone concentration | Size | NW/GW | Cooling way | Voltage | Gas feeding |
| QLA-3G | 3G | 60W | 30-60㎡ | 12-25mg/L | 50*16*20cm | 3.4/4.2 kg | Air cooling | 220V/50Hz | Air Source |
| QLA-5G | 5G | 80W | 50-80㎡ | 12-25mg/L | 50*16*20cm | 5.7/6.5 kg | Air cooling | 220V/50Hz | Air Source |
| QLA-10G | 10G | 150W | 80-120㎡ | 12-25mg/L | 60*23*27.5 cm | 8.5/9.8 kg | Air cooling | 220V/50Hz | Air Source |
